How to Test Payment APIs: A Practical Guide for QA and Backend Teams

Payment API testing is more complex than checking whether an endpoint returns 200 OK. A payment can receive an initial response successfully but still fail during customer authentication, capture, webhook processing, refunding, or reconciliation. This is where Automation Testing becomes essential it enables teams to run these complex payment scenarios consistently and repeatedly. Effective payment API testing must therefore validate the complete transaction lifecycle, including what happens when requests time out, events arrive twice, issuer decisions are delayed, or downstream services become unavailable.

This guide provides a comprehensive approach to payment API testing that QA and backend teams can use to validate every aspect of their payment integration.

• What is Payment API Testing?
• What Does Payment API Testing Include?
• Why Does Testing Payment APIs Matter?
• How Does a Payment API Transaction Work?
• Build a Payment API Test Matrix
• Step-by-Step Payment API Testing Guide
• Practical Example: Testing a Payment Retry
• Sandbox Testing vs. Mocks vs. Production Checks
• Best Practices for Testing Payment APIs
• Common Payment API Testing Mistakes
• Troubleshooting Payment API Tests
• Tools for Payment API Testing
• Limitations and Risks
• Payment API Release Checklist

payment API testing verifies that an application can initiate, process, update, and reconcile payments correctly through a payment service provider. A thorough payment API testing strategy covers request validation, authorization, customer authentication, capture, asynchronous webhooks, refunds, retries, security controls, and internal accounting. payment API testing should occur primarily in an isolated sandbox with provider-supplied test payment methods rather than real card data.

Key takeaways

• Test the complete payment lifecycle, not only the initial API response.
• Use provider-issued test tokens, cards, accounts, and sandbox credentials.
• Verify payment amounts, currency, state transitions, ledger entries, and fulfillment side effects.
• Retry uncertain requests with a stable idempotency key to prevent duplicate operations.
• Treat webhooks as untrusted, asynchronous, and potentially duplicated or out of order.
• Automate deterministic tests in CI, while reserving controlled end-to-end checks for higher environments.

A payment API testing suite commonly covers:

• Authentication and authorization
• Request and schema validation
• Successful payment authorization
• Soft and hard declines
• Three-Domain Secure, or 3D Secure, authentication
• Delayed or pending payment methods
• Manual and automatic capture
• Voids and authorization expiry
• Partial and full refunds
• Duplicate requests and idempotency
• Webhook authentication and processing
• Rate limits, timeouts, and provider errors
• Currency and amount handling
• Reconciliation between provider and merchant records
• Access control and protection of payment data

Payment API testing is different from checkout user-interface testing. UI tests verify the customer journey, while API tests validate contracts, state changes, error handling, and system-to-system behavior. Comprehensive payment API testing ensures that the entire payment flow works correctly.

The term should also not be confused with fraudulent “card testing,” in which attackers attempt to determine whether stolen card details are valid.

A payment integration connects revenue-generating workflows to several independent systems. A defect can cause an order to be fulfilled without payment, a customer to be charged twice, or a valid payment to remain incorrectly marked as pending. This is why payment API testing is critical for any business that processes payments online.

The main risks include:

• Lost revenue: Approved payments may not be captured or associated with the correct order.
• Duplicate charges: A timed-out request may be repeated without idempotency protection.
• Incorrect fulfillment: A forged or duplicated webhook may trigger shipment or service activation.
• Customer support costs: Vague decline handling can cause unnecessary retries and abandoned purchases.
• Accounting discrepancies: Provider records and the merchant ledger may disagree after refunds or asynchronous events.
• Security exposure: Weak authentication, broken object-level authorization, unrestricted resource consumption, and unsafe trust in third-party APIs are recognized API security risks.
• Compliance concerns: PCI DSS establishes technical and operational requirements for entities that store, process, transmit, or can affect the security of payment account data.

Thorough payment API testing helps mitigate all these risks by catching defects before they reach production.

Testing does not establish PCI DSS compliance by itself. It provides evidence that specific controls and application behaviors work as intended.

A typical online payment follows this sequence. Understanding this flow is essential for effective payment API testing.

• The customer enters payment information in a provider-hosted form or secure client component.
• The provider returns a token or payment-method identifier.
• The merchant backend creates a payment using the token, amount, currency, order reference, and idempotency key.
• The provider returns an initial status such as succeeded, authorized, requires_action, pending, or declined.
• The customer completes additional authentication when required.
• The provider processes the transaction through its acquiring and banking connections.
• The provider sends one or more webhook events to the merchant.
• The merchant verifies the webhook, deduplicates it, updates its payment ledger, and triggers permitted business actions.
• Later operations may capture, void, refund, or dispute the payment.

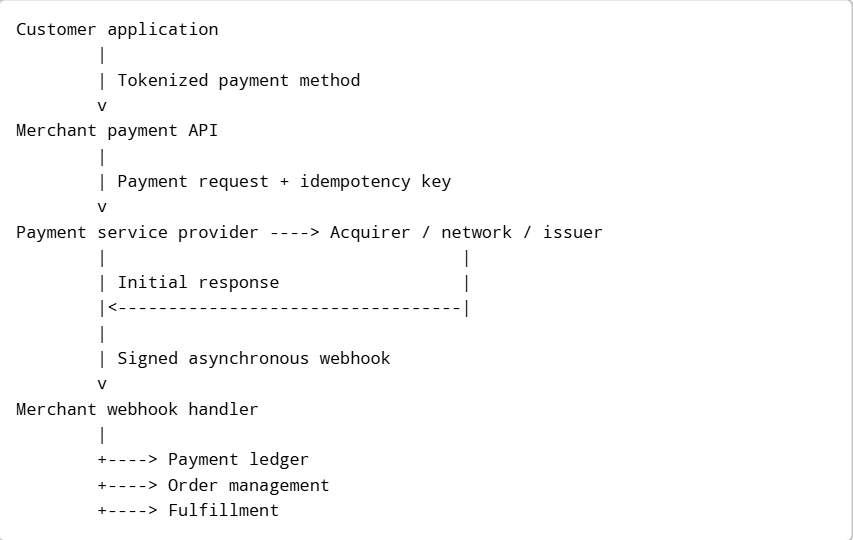

A simplified flow looks like this:

Status names and finality rules vary by provider and payment method. Your payment API testing should follow the state model documented for the integration you actually use.

Before automating individual requests, create a coverage matrix that connects business risks to test scenarios. This is a foundational step in payment API testing.

1. Define the API contract and payment state machine

Action: Document every request, response, field constraint, error code, and permitted state transition.

Why it matters: Payment defects often occur when two systems interpret the same status differently. For example, one service may treat authorized as paid while another waits for captured. Clear state definitions are essential for payment API testing.

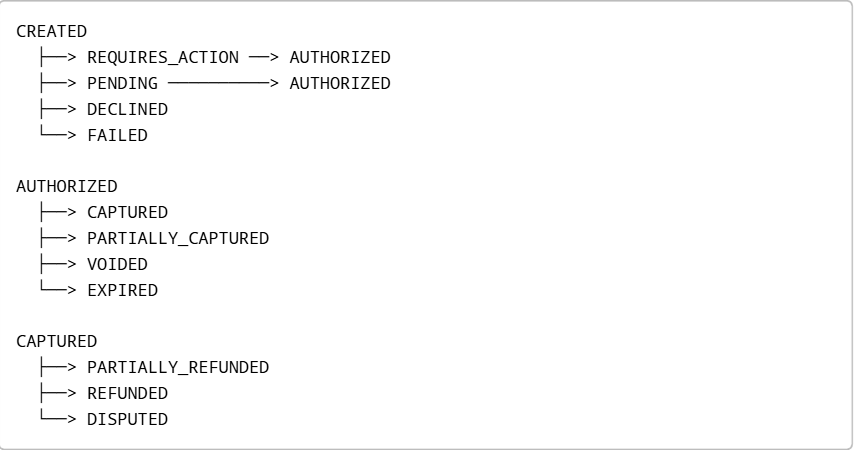

A provider-neutral internal state machine might look like this:

For every transition, specify:

• The triggering API response or webhook event
• Whether the transition is reversible
• Whether fulfillment is permitted
• Which amount fields must change
• Whether customer communication is required
• How duplicate or stale transitions are handled

Expected result: The test team can determine whether any observed transition is valid without relying on assumptions.

Common error: Modeling payment state as a single paid: true/false value. That model cannot accurately represent authorization, pending confirmation, partial capture, refunds, or disputes.

2. Create an isolated sandbox environment

Action: Provision separate test credentials, merchant accounts, webhook secrets, customer records, and configuration.

Stripe provides isolated sandboxes, test API keys, simulated payment methods, and test events without moving real money through card networks. PayPal similarly provides a self-contained sandbox with fictitious accounts and mock transactions. A sandbox is the foundation of safe payment API testing.

Keep these values separate from production:

PAYMENT_API_BASE_URL
PAYMENT_API_KEY
PAYMENT_WEBHOOK_SECRET
TEST_MERCHANT_ID
TEST_SUCCESS_PAYMENT_METHOD
TEST_DECLINED_PAYMENT_METHOD
TEST_REQUIRES_ACTION_METHOD

Use a secret manager or protected CI variables. Do not commit credentials to a repository.

Use only payment details specifically supplied for the provider’s test environment. Adyen, for example, states that its test card numbers work only on its test platform.

Expected result: Test activity cannot create real charges or modify live customer and merchant data.

Common errors:

• Mixing a production API key with a sandbox URL
• Using a sandbox key against a production endpoint
• Sharing one mutable sandbox across unrelated test suites
• Entering real card information in automated tests

3. Prepare positive, negative, and uncertain scenarios

Action: Obtain the provider’s supported test values and map each value to a business outcome. This is a critical step in payment API testing.

At minimum, include:

• Successful authorization
• Successful automatic capture
• Generic decline
• Insufficient funds
• Expired payment method
• Invalid security code
• Authentication required
• Authentication failed
• Processing error
• Pending payment
• Delayed confirmation
• Refund success
• Refund failure
• Dispute event
• Provider timeout
• Duplicate submission

Provider test environments commonly expose special values for simulating these outcomes. Stripe documents simulated successes, declines, disputes, refunds, and 3D Secure authentication, while Adyen documents values for triggering specific refusal reasons.

Expected result: Each important success and failure branch can be reproduced deterministically.

Common error: Testing only the generic “declined” outcome. Your application may need different handling for a retryable issuer response, an expired payment method, failed authentication, or an invalid merchant configuration.

4. Send a baseline payment request

Start with one known successful scenario before adding failure injection. This baseline is essential for payment API testing.

The following example uses an illustrative merchant API contract. Replace the URL, fields, and test token with values from your system.

curl --request POST \
    "$PAYMENT_API_BASE_URL/v1/payments" \
    --header "Authorization: Bearer $PAYMENT_API_KEY" \
    --header "Content-Type: application/json" \
    --header "Idempotency-Key: order-1042-payment-1" \
    --data '{
        "amount_minor": 4999,
        "currency": "USD",
        "payment_method_token": "pm_test_success",
        "merchant_reference": "ORD-1042",
        "capture_method": "automatic"
    }'

A normalized response might be:

{
    "id": "pay_test_8f42a1",
    "merchant_reference": "ORD-1042",
    "amount_minor": 4999,
    "currency": "USD",
    "status": "succeeded",
    "captured_amount_minor": 4999
}

Verify more than the HTTP status:

• The response matches the documented schema.
• amount_minor equals 4999.
• currency equals USD.
• The merchant reference is unchanged.
• A unique provider or internal payment ID exists.
• The resulting state is valid for automatic capture.
• Exactly one internal ledger record exists.
• Logs contain correlation identifiers but not sensitive payment data.

Expected result: The provider and merchant system agree on the payment identity, amount, currency, and state.

Common error: Treating every 2xx response as a successful payment. Some APIs return a successful HTTP response for a business-level state such as requires_action, pending, or declined.

5. Automate contract and functional assertions

The following pytest example targets the illustrative contract above. Automating assertions is a key part of payment API testing.

# tests/test_payments.py
from __future__ import annotations
import os
import uuid
from typing import Any
import pytest
import requests
BASE_URL = os.environ["PAYMENT_API_BASE_URL"].rstrip("/")
API_KEY = os.environ["PAYMENT_API_KEY"]
SUCCESS_TOKEN = os.getenv("TEST_SUCCESS_PAYMENT_METHOD", "pm_test_success")
DECLINED_TOKEN = os.getenv("TEST_DECLINED_PAYMENT_METHOD", "pm_test_declined")
def create_payment(
*,
amount_minor: int,
currency: str,
payment_method_token: str,
merchant_reference: str,
idempotency_key: str,
) -> requests.Response:
return requests.post(
f"{BASE_URL}/v1/payments",
headers={
"Authorization": f"Bearer {API_KEY}",
"Content-Type": "application/json",
"Idempotency-Key": idempotency_key,
},
json={
"amount_minor": amount_minor,
"currency": currency,
"payment_method_token": payment_method_token,
•
8
"merchant_reference": merchant_reference,
"capture_method": "automatic",
},
timeout=(3.05, 15),
)
def response_json(response: requests.Response) -> dict[str, Any]:
try:
body = response.json()
except ValueError as exc:
pytest.fail(
f"Expected JSON but received status={response.status_code}, "
f"body={response.text[:500]!r}"
)
raise exc
assert isinstance(body, dict), "Expected a JSON object"
return body
def test_successful_payment() -> None:
reference = f"TEST-{uuid.uuid4()}"
response = create_payment(
amount_minor=4999,
currency="USD",
payment_method_token=SUCCESS_TOKEN,
merchant_reference=reference,
idempotency_key=f"{reference}-attempt-1",
)
assert response.status_code == 201
body = response_json(response)
assert body["merchant_reference"] == reference
assert body["amount_minor"] == 4999
assert body["currency"] == "USD"
assert body["status"] == "succeeded"
assert body["captured_amount_minor"] == 4999
assert body["id"]
def test_declined_payment_is_not_fulfilled() -> None:
reference = f"TEST-{uuid.uuid4()}"
response = create_payment(
amount_minor=4999,
currency="USD",
payment_method_token=DECLINED_TOKEN,
9
merchant_reference=reference,
idempotency_key=f"{reference}-attempt-1",
)
assert response.status_code == 402
body = response_json(response)
assert body["error"]["code"] == "payment_declined"
assert body["error"]["retryable"] is False
# Add an assertion against your order API or test database:
# assert get_order(reference)["fulfillment_status"] == "blocked"
def test_repeated_idempotent_request_returns_one_payment() -> None:
reference = f"TEST-{uuid.uuid4()}"
key = f"{reference}-attempt-1"
first = create_payment(
amount_minor=4999,
currency="USD",
payment_method_token=SUCCESS_TOKEN,
merchant_reference=reference,
idempotency_key=key,
)
second = create_payment(
amount_minor=4999,
currency="USD",
payment_method_token=SUCCESS_TOKEN,
merchant_reference=reference,
idempotency_key=key,
)
assert first.status_code in {200, 201}
assert second.status_code in {200, 201}
first_body = response_json(first)
second_body = response_json(second)
assert first_body["id"] == second_body["id"]
assert first_body["merchant_reference"] == reference
assert second_body["merchant_reference"] == reference

Adapt the exact status codes and response fields to your own contract rather than making the assertions permissive.

Expected result: A test fails when the API changes its schema, business outcome, amount, currency, or duplicate-prevention behavior.

Common error: Asserting only that a field exists. A payment ID can exist even when its amount, ownership, or status is wrong.

6. Test idempotency and uncertain network outcomes

Idempotency allows a client to repeat a request without repeating its financial effect. This is one of the most critical aspects of payment API testing.

Stripe documents idempotency keys as a way to retry creation or update requests safely after connection errors without creating the operation twice.

Test the following sequence:

• Send a payment request with idempotency key order-1042-payment-1.
• Simulate the provider receiving the request while the client loses the response.
• Repeat the identical request with the same key.
• Verify that both responses reference the same payment.
• Verify that the provider dashboard contains one payment.
• Verify that the merchant ledger contains one payment entry.
• Verify that fulfillment occurred no more than once.

Also test misuse:

• Same key with a different amount
• Same key with a different currency
• Same key for a different order
• New key after a genuine decline
• Concurrent requests with the same key
• Key expiration or reuse outside the supported retention period

An idempotency key should identify one logical operation. Generate it before the first attempt and preserve it across retries of that operation.

Do not generate a new key automatically every time an HTTP client retries. That defeats duplicate protection.

Expected result: Network uncertainty never produces an untracked second charge.

Common error: Using a random key inside a retry loop, causing every retry to appear to be a new operation.

7. Test webhook verification and processing

Payment webhooks must be tested as a separate API surface. Webhook validation is a critical part of payment API testing.

• Read the original request body.
• Verify the provider’s signature using the correct endpoint secret.
• Reject invalid or expired signatures.
• Parse the verified event.
• Check whether the event ID has already been processed.
• Apply the state transition in a database transaction.
• Record the event ID and result.
• Return a successful response promptly.
• Perform slower downstream work asynchronously where appropriate.

Stripe recommends verifying webhook signatures with its official libraries and notes that acting on unverified events can allow forged messages to trigger actions such as fulfillment or account access.

PayPal’s webhook documentation likewise requires the original raw body for cryptographic verification and provides a simulator for posting mock events to a test listener.

Use an architecture similar to:

def handle_payment_webhook(raw_body: bytes, headers: dict[str, str]) -> int:
    event = payment_provider.verify_webhook(
        raw_body=raw_body,
        headers=headers,
        secret=WEBHOOK_SECRET,
    )
    if processed_event_repository.exists(event.id):
        return 200
    with database.transaction():
        payment = payment_repository.lock_by_provider_id(
            event.payment_id
        )
        apply_valid_transition(payment, event)
        processed_event_repository.insert(event.id)
        enqueue_follow_up_actions(event)
    return 200

Test at least these cases:

Expected result: A webhook can be delivered repeatedly without causing repeated fulfillment, refunds, emails, or ledger postings.

Common error: Parsing and re-serializing JSON before signature verification. Many providers sign the original byte sequence, so changing whitespace or property ordering can invalidate verification.

8. Test authorization, capture, void, and refund flows

Do not stop after creating a payment. Test every lifecycle operation your product supports. Full lifecycle testing is essential for comprehensive payment API testing.

Authorization and capture

Test:

• Automatic capture
• Manual capture
• Full capture
• Partial capture
• Duplicate capture
• Capture exceeding the authorized amount
• Capture after authorization expiry
• Concurrent capture requests

Verify:

• Authorized, captured, and remaining amounts
• The provider transaction identifier
• The merchant ledger
• Order fulfillment rules
• Related webhook events

Voids

Test voiding an uncaptured authorization and attempting to void a captured payment.

The second operation should be rejected or converted into the correct supported operation according to the provider contract.

Refunds

Test:

• Full refund
• Partial refund
• Multiple partial refunds
• Refund of the remaining balance
• Refund exceeding the captured amount
• Duplicate refund request
• Refund while the payment is pending
• Delayed refund confirmation
• Refund webhook arriving twice

Represent refunds as separate financial objects rather than overwriting the original payment.

For example:

{
    "payment_id": "pay_test_8f42a1",
    "captured_amount_minor": 4999,
    "refunded_amount_minor": 1000,
    "refundable_amount_minor": 3999,
    "status": "partially_refunded"
}

Expected result: The sum of successful refunds never exceeds the captured amount, and each refund can be traced independently.

Common error: Marking the entire order as refunded after the first partial refund.

9. Test security controls and abusive behavior

Payment endpoints are attractive targets because each successful request can create financial or operational consequences. Security testing is a critical component of payment API testing.

Include tests for:

• Missing authentication
• Invalid, expired, and revoked credentials
• Credentials for the wrong environment
• Access to another customer’s payment
• Access to another merchant’s refund
• Attempts to override protected fields
• Negative, zero, excessive, or overflowing amounts
• Unsupported currencies
• Excessive metadata size
• Unexpected JSON properties
• Repeated low-value payment attempts
• High request concurrency
• Webhook signature bypass
• Secret or payment-data leakage in logs
• Server-side requests to attacker-controlled URLs
• Rate-limit enforcement

OWASP identifies broken object-level authorization, broken authentication, unrestricted resource consumption, unrestricted access to sensitive business flows, and unsafe consumption of APIs among the major API security risks.

For authorization tests, attempt to retrieve, capture, or refund a payment using credentials belonging to another tenant. The request must fail without revealing sensitive object details.

For resource-consumption tests, define safe limits before running the suite. Do not send uncontrolled load to a third-party payment provider without explicit permission.

Expected result: Unauthorized and abusive requests fail without changing payment state or exposing protected data.

Common error: Testing authentication but not object ownership. A valid API credential should not automatically permit access to every payment identifier.

10. Test resilience, retries, and rate limits

Inject controlled failures at each integration boundary. Resilience testing is an advanced but essential aspect of payment API testing.

• Connection timeout before the request is sent
• Timeout after the provider has accepted the request
• Connection reset during the response
• Provider 429 response
• Provider 500, 502, 503, or 504 response
• Slow provider response
• DNS or TLS failure
• Delayed webhook
• Duplicate webhook
• Internal database outage
• Queue outage after successful payment processing

Your retry policy should distinguish between:

• Safe retries: Read-only requests or idempotent writes
• Potentially safe retries: Writes protected by a stable idempotency key
• Unsafe retries: Writes without duplicate protection
• Non-retryable failures: Validation errors, hard declines, or authorization failures

Use bounded exponential backoff with jitter where the provider recommends retries. Respect any retry-related response headers. Record the final outcome and raise an operational alert when retry attempts are exhausted.

Expected result: Temporary faults recover without duplicate financial operations or infinite retry loops.

Common error: Retrying every error, including hard declines and invalid requests.

11. Verify reconciliation and observability

API and webhook tests prove individual interactions. Reconciliation tests prove that the merchant’s financial records still agree with the provider. This is often overlooked in payment API testing but is critical for financial integrity.

For each test payment, compare:

• Merchant reference
• Provider payment ID
• Authorized amount
• Captured amount
• Refunded amount
• Currency
• Payment status
• Event history
• Settlement or balance reference when available

Create tests for:

• Provider payment missing internally
• Internal payment missing at the provider
• Amount mismatch
• Currency mismatch
• Refund mismatch
• Duplicate internal ledger entry
• Payment stuck in a non-terminal state
• Webhook event received but not applied
• Applied state transition without a corresponding event or API response

Logs and traces should include:

• Correlation ID
• Merchant reference
• Provider payment ID
• Provider request ID
• Idempotency key or a safe hash of it
• Webhook event ID
• Previous and new payment states
• Error category
• Retry attempt

Do not log full card numbers, security codes, secret keys, complete authorization headers, or unredacted sensitive payloads.

Expected result: Every test transaction can be traced across the request, provider response, webhook, ledger, and business workflow.

Common error: Logging only the order ID, which may not be sufficient to correlate provider retries or multiple payment attempts.

12. Add payment tests to CI/CD

Divide the suite by speed, scope, and dependency. CI/CD integration is essential for continuous payment API testing.

Pull-request suite

Run:

• Schema and contract checks
• Unit tests for state transitions
• Webhook signature tests
• Mocked error handling
• Amount and currency validation
• Idempotency logic tests

Integration suite

Run against a sandbox:

• Successful payment
• Representative decline
• Authentication-required flow
• Idempotent retry
• Valid and invalid webhooks
• Refund flow

Scheduled suite

Run nightly or on a controlled schedule:

• Complete provider scenario matrix
• Delayed payment methods
• Reconciliation
• Retry and timeout injection
• Multi-currency behavior
• Concurrency tests within approved limits

Postman Collections can be executed through command-line tooling and integrated into CI pipelines. Current Postman documentation recommends the Postman CLI for newer collection formats, while Newman remains available for compatible collections.

A code-based pipeline might run:

python -m pip install -r requirements-test.txt
pytest -m "contract or smoke" --junitxml=test-results/payment-api.xml

Keep test credentials in protected CI variables and configure automatic cleanup for test customers, orders, and reusable fixtures.

Business scenario

A customer places order ORD-1042 for USD 49.99. The payment provider creates the payment, but the merchant application times out before receiving the response.

The application must retry without charging the customer twice. This scenario is a classic challenge in payment API testing.

Preconditions

• The sandbox is configured.
• pm_test_success represents a successful test payment method.
• The order is unpaid.
• The payment amount is stored as 4999 minor units.
• The idempotency key is ORD-1042-payment-1.
• The webhook endpoint is registered with its sandbox secret.

Test procedure

• Send the create-payment request.
• Interrupt or discard the HTTP response after the provider receives the request.
• Repeat the identical request with the same idempotency key.
• Record the returned payment ID.
• Query the provider or merchant payment endpoint.
• Deliver the success webhook twice.
• Check the order, ledger, and fulfillment queue.
• Create a partial refund for USD 10.00.
• Process the refund webhook.
• Run reconciliation.

Expected results

• Both create attempts identify the same payment.
• The provider contains one USD 49.99 payment.
• The merchant ledger contains one charge entry.
• The duplicate webhook does not repeat fulfillment.
• The order moves from PAYMENT_PENDING to PAID once.
• The refund creates a separate USD 10.00 financial record.
• The refundable balance becomes USD 39.99.
• Reconciliation reports no difference.

Error condition

Repeat the second request with the same idempotency key but change the amount from 4999 to 5999.

The API should reject the conflicting reuse or otherwise prevent it from being interpreted as the original logical operation. No second payment should be created. This tests the robustness of your payment API testing against idempotency violations.

No single environment covers every payment risk. payment API testing should use a combination of approaches.

• Mocks for fast, deterministic tests and unusual failures.
• Sandboxes for provider contracts, test credentials, authentication flows, and webhooks.
• Controlled production checks only where necessary, with approved amounts, accounts, monitoring, and cleanup.

Provider sandboxes can have limitations. Stripe documents sandbox-specific restrictions, and PayPal notes that some production features do not apply to its sandbox.

Model explicit payment states

Use a documented state machine rather than a boolean paid flag. This prevents invalid transitions and makes delayed or partial operations testable. This is a foundational best practice for payment API testing.

Store monetary values safely

Use integer minor units or an appropriate decimal representation. Test currencies with different minor-unit rules according to your supported payment methods and provider contract.

Assert business side effects

A payment test should verify the order, ledger, inventory reservation, fulfillment message, notification, and reconciliation record not only the provider response. Comprehensive payment API testing validates the entire business outcome.

Use stable merchant references

Assign a unique merchant reference to every logical payment attempt. Preserve it across services so support and operations teams can trace the transaction.

Verify every webhook before acting

Use the provider’s official verification library where available. Test invalid signatures and replay conditions as release-blocking security cases.

Make webhook processing idempotent

Deduplicate events using the provider event ID or another documented unique identifier. Protect the check and state update with a transaction or equivalent concurrency control.

Separate retries from new attempts

Reuse the original idempotency key for a retry of the same operation. Use a new logical attempt only when business rules permit a genuinely new payment.

Use provider-supported test values

Provider test values are designed to produce known responses. Do not invent card numbers or use real customer data. This is a critical rule in payment API testing.

Test your internal abstraction and the provider contract

If your platform supports multiple payment providers, run shared behavioral tests against the normalized internal API and provider-specific tests against each adapter.

Keep test data observable and disposable

Give test records clear prefixes, attach correlation identifiers, and delete or archive them according to a predictable cleanup policy.

Pin and review API versions

Record the provider API version used by the test environment. Rerun the complete contract suite before upgrading SDKs, API versions, or checkout components.

Avoiding these pitfalls is essential for effective payment API testing.

Why does the payment succeed but the order remain unpaid?

The most likely cause is a missing, rejected, or unprocessed webhook. This is a common issue in payment API testing.

Check the provider’s event dashboard, webhook delivery status, signature-verification logs, event deduplication table, and payment-state transition logs. Confirm that the handler uses the correct sandbox secret and that the event references the expected merchant or provider payment ID.

Do not manually mark the order paid until the provider state has been verified.

Why are duplicate payments created after a timeout?

The retry probably used a new idempotency key or no key at all. Idempotency testing is a critical part of payment API testing.

Log the key associated with each logical operation and verify that all network retries reuse it. Also check whether retries are occurring in more than one layer, such as the HTTP client, job queue, and application service.

Why does webhook signature verification fail?

Common causes include:

• Using the live secret for a sandbox webhook
• Verifying a parsed or re-serialized body instead of the raw bytes
• Reading the body once in middleware and losing it
• Using the secret for another endpoint
• Altering headers through a proxy
• Excessive clock skew where timestamp validation is used

Capture the raw request in a secure test environment and compare the verification inputs with the provider’s documentation.

Why does a test pass alone but fail in the full suite?

The suite may share customers, orders, idempotency keys, webhook records, or mutable sandbox configuration.

Generate unique references, avoid execution-order dependencies, clean up fixtures, and wait for asynchronous conditions by polling a specific state with a bounded timeout rather than adding arbitrary sleep statements.

Why does the API return 401 or 403?

A 401 commonly indicates missing or invalid authentication. A 403 commonly indicates that authenticated credentials are not allowed to perform the operation.

Verify the endpoint, environment, credential scope, merchant account, resource ownership, and clock when signed requests are used. Follow the provider’s exact error contract rather than relying only on generic HTTP meanings.

Why does a declined-payment test return a different error?

The test value may not apply to the selected payment method, country, account configuration, or integration type.

Confirm that the provider supports the scenario for your exact test environment. Adyen, for example, documents specific fields and values for triggering refusal reasons.

Why is a refund still pending?

Refund processing can be asynchronous. The initial API response may acknowledge the request before the provider reaches a terminal refund state.

Check refund webhooks, provider status, ledger updates, and retry activity. Ensure the application does not issue another refund merely because confirmation is delayed.

Why does the API return 429 or intermittent 5xx responses?

The test may be exceeding rate limits, or the provider may be experiencing a temporary fault.

Apply bounded retries only when safe, use idempotency for financial writes, reduce test concurrency, and preserve request IDs for support escalation. Do not classify a timed-out write as failed until its provider state has been checked.

A practical toolchain for payment API testing usually contains several layers:

• Provider sandbox and dashboard: Creates test merchants, payment methods, transactions, and webhook events.
• API client: Supports exploratory requests, environment variables, and saved scenarios.
• Code-based test runner: Executes deterministic contract and integration tests in CI.
• Mock server: Simulates provider errors, slow responses, malformed payloads, and rare edge cases.
• Webhook test utility: Forwards or generates sandbox events during local development.
• Load-testing tool: Measures merchant-side behavior within agreed provider limits.
• Schema validator: Detects request and response contract changes.
• Observability platform: Correlates payment requests, events, state transitions, and failures.
• Reconciliation job: Compares the merchant ledger with provider records.

Tool choice matters less than maintaining test isolation, deterministic assertions, provider-specific configuration, and release-blocking coverage for financial risks.

Payment API testing has several unavoidable limitations:

• A sandbox may not reproduce every issuer, network, risk-engine, settlement, or regional behavior.
• Simulated declines may be deterministic while real issuer decisions are not.
• Provider status names and retry rules are not interchangeable.
• Browser and device testing may still be required for 3D Secure and digital-wallet journeys.
• Sandbox approval does not prove production capacity, compliance, or operational readiness.
• Mock servers can become inaccurate when provider contracts change.
• Production tests create real records and may create real financial, tax, support, or reconciliation consequences.
• Security and load tests against third-party services require controlled scope and authorization.

Document these limitations in the test report and identify which risks require monitoring or operational controls rather than pre-release tests.

Before enabling live transactions, confirm that:

• Successful, declined, pending, and authentication-required flows pass.
• Amount and currency validations are enforced.
• Idempotent retries create one financial operation.
• Webhook signatures are verified from the original request body.
• Duplicate and out-of-order events do not corrupt state.
• Capture, void, and refund rules are validated.
• Tenant and object-level authorization tests pass.
• Logs contain correlation data without sensitive payment information.
• Provider and merchant records can be reconciled.
• Rate-limit and temporary-error handling is bounded.
• Alerts exist for stuck, mismatched, and repeatedly failing payments.
• Sandbox and production credentials are isolated.
• Rollback and incident procedures are documented.
• Provider-specific go-live requirements have been reviewed.

This checklist ensures your payment API testing has covered all critical areas before going live.

Conclusion

Effective payment API testing proves that money, payment state, and business state remain consistent under both normal and abnormal conditions. Begin with a documented payment state machine, use provider-supported sandbox values, and assert the complete business outcome rather than only the HTTP response. Give special attention to idempotency, webhook authenticity, duplicate processing, refunds, authorization boundaries, and reconciliation.

The next practical action is to select one representative checkout flow and convert it into an automated lifecycle test covering payment creation, a simulated uncertain retry, webhook delivery, fulfillment, refunding, and final reconciliation.

Ready to implement comprehensive payment API testing? Codoid’s API testing services cover the full spectrum functional, contract, security, performance, and resilience testing for payment integrations.

Uncover hidden risks in your API integration.

Get an API Audit

Frequently Asked Questions
